DW系列帶式干燥機─【佳發制粒干燥】

適合行業	干燥設備
發布作者	佳發制粒干燥
最近更新	2023-01-17 15:57:43

文章詳情

概述 Descriptions

★該機是穿流連續式干燥設備，用于透氣性較好的片狀，條狀，顆粒狀物料的干燥，對于脫水蔬菜，中藥飲片等含水量高，而溫度不允許高的物料尤為合適，該系列干燥機具有干燥速度快，蒸發強度高，產品質量好的優點。對脫水濾餅狀的膏狀物料，需經造粒或制成棒狀后亦可干燥。

★This machine is a continuous penetrating flow drying equipment applied .For drying pieces strip and particles state materials with good ventilation .the machine is suitable for the materials such as de-watering vegetable, herbal medicine of traditional Chinese medicine and othersfor which the water contents are high and high drying temperature is not allowed. The machine owns the advantages, of fast drying speed, high evaporation capacity and good product quality. The de-watered filtered cake state paste material should be made into particles or strips before drying process.

原理 principle

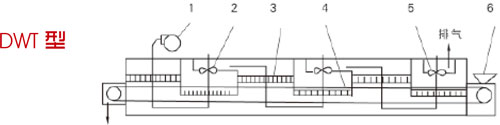

★物料由加料器均勻地鋪在網帶上，網帶一般采用12-60目不銹鋼絲網，由傳動裝置拖動在干燥機內移動。干燥機由若干單元組成，每一單元熱風獨立循環，部分尾氣由專門濕風機排出，廢氣由調節閥控制，熱氣由下往上或由上往下穿過鋪滿物料的網帶完成熱量與質量傳遞的進程，帶走物料的水份。網帶緩慢移動，運行速度可根據物料溫度自動調節，干燥后的成品連續落入收料器中。上下循環單元根據用戶需要可靈活配備，單元數量亦可根據需要選取

★The materials are uniformly distributed on the mesh-belt by the material feeder. The mesh-belt Generally adopts 12-60 mesh stainless steel mesh and it is drawn by a transmission device and move inside the dryer . the dryer is composed of several sections. For each section the hot air is circulated separately .part of exhausted gas is exhausted by a special moisture exhaust blower . the waste gas is controlled by an adjustment valve. The hot air passes thyough the mesh-belt covered with bring water material away. The mesh-belt moves slowly, running speed can be freely adjusted according to the material property. The final products after the drying process will fall into the material collector continuously . the top and low circulation units can be freely equipped according to the user requirements .the number of section might be selected according to the production demands.

應用 Applications

★脫水蔬菜、顆粒飼料、味精、椰蓉、有機顏料、合成橡膠、丙稀纖維、藥品、藥材、小木制品、塑料制品、電子原器件老化、固化等。

★De-watering vegetable , particle feed ,gourmet Powder,shredded coconut stuffing,orcolor,compound rubber, acral fiber, medicine product, medicine material, small wooden product, plastic product, Aging and solidification for the electronic component and device

所有參數僅作參考，視物料情況，本公司擁有變更權利，并不另行通知。

All datas are used for reference only. According to the condition of material, our factory has the right to change but not notice, pardon!

所有參數僅作參考，視物料情況，本公司擁有變更權利，并不另行通知。

All datas are used for reference only. According to the condition of material, our factory has the right to change but not notice, pardon!

所有參數僅作參考，視物料情況，本公司擁有變更權利，并不另行通知。

All datas are used for reference only. According to the condition of material, our factory has the right to change but not notice, pardon!
