DSH系列錐形雙螺桿螺旋混合機─【佳發制粒干燥】

2023-01-17 佳發制粒干燥 0 百度一下

適合行業	混合設備
發布作者	佳發制粒干燥
最近更新	2023-01-17 15:57:26

概述：應用概述 General of applications★由螺旋的公.自轉使物料在錐體內產生復合運動，主要產生四種運動形式：1.螺旋沿壁公轉，使物料沿錐壁作圓周運動；2.螺旋自轉使物料自錐底沿螺旋上升；3.螺旋的公.自轉復合運動使一部分物料被吸收到螺旋圓柱面內同時受螺旋自轉的離心力作用使螺旋圓柱面內

文章詳情

應用概述 General of applications

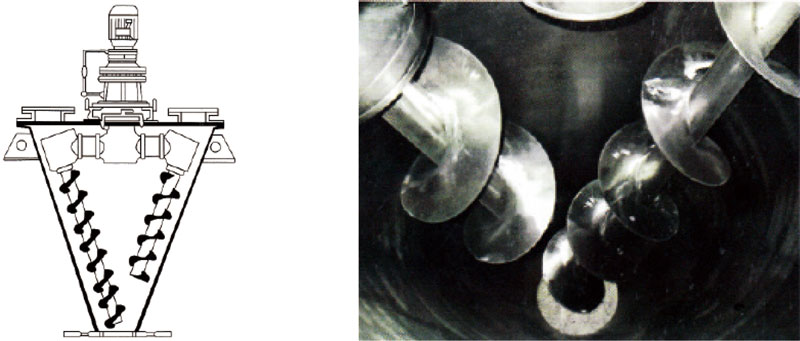

★由螺旋的公.自轉使物料在錐體內產生復合運動，主要產生四種運動形式：

1.螺旋沿壁公轉，使物料沿錐壁作圓周運動；

2.螺旋自轉使物料自錐底沿螺旋上升；

3.螺旋的公.自轉復合運動使一部分物料被吸收到螺旋圓柱面內同時受螺旋自轉的離心力作用使螺旋圓柱面內的一部分物料向錐體徑向排放；

4.上升的物料受自身重力作用下降。四種運動在混合機內產生對流.剪切.擴散.從而達到快速均勻混合的目的。

★應用于化工、醫藥、農藥、染料、石油、冶金、建材等粉體與粉體（固-固）、粉體與液體（固-液）、液體與液體（液-液）混合、反應、干燥、冷卻。

★The material is made to conduct a compound motion in the cone because of the rotation and revolution of the screws. The effected motions include:

1.The revolution of the screw along the wall making the material conduct a circumferential motion;

2.The rotation of the screw making the material rise along the screw from the cone bottom;

3.The compound motion of the rotation and revolution of the screws making partial, material be absorbed into the screw cylindroid meanwhile, under the action of centrifugal force, the partial material in the screw cylindroid discharges radially.

4.The rised material drops under its sole weight. The four kinds of motions effect convection, shearing,diffusion in the cone, thus quick and even mixing can be achieved.

★It is suitable for chemical industry, pharmaceutical industry pesticide, dyestuff, petroleum industry, metallurgical industry, construction material and etc. Such as in the mixing, reaction, drying, cooling of powder and powder(solid-solid), powder and liguid(solid-liguid), liguid and liguid(liguid-liguid).

設備特點 Features of equipment

★可加裝飛刀，噴淋霧化裝配，滿足特殊工藝要求。

★出料閥有手動，氣動兩種方式。

★特殊物料可加大電機功率（加重型）。

★This model of machine can be equipped with single screw, double screws, triscrews.

★It can be equipped with flyingenttder additionally, so as to meet the requirements for special technology.

★The discharge valve adopts two ways, one is manual or the other is pheumatical.

★The power of motor can be enlarged for special material(strengthening type).

型號 Type	全容積 Total volume(m3)	裝載系數 Load factor	裝機功率 Equipped power(Kw)	操作條件 Opetating conditions	外形尺寸 Overall dimensions (mm)	重量 Weight(Kg)
DSH-0.1	0.1	≤0.6	0.5	常溫常壓粉塵密封	1569×?702	250
DSH-0.3	0.3	≤0.6	2.2	常溫常壓粉塵密封	1929×?920	550
DSH-0.5	0.5	≤0.6	3	常溫常壓粉塵密封	2322×?1124	660
DSH-1.0	1.0	≤0.6	4	常溫常壓粉塵密封	2869×?1480	1200
DSH-1.5	1.5	≤0.6	5.5	常溫常壓粉塵密封	3140×?1633	1350
DSH-2.0	2.0	≤0.6	5.5	常溫常壓粉塵密封	3489×?1816	1500
DSH-3.0	3.0	≤0.6	7.5	常溫常壓粉塵密封	3747×?2210	2300
DSH-4.0	4.0	≤0.6	11	常溫常壓粉塵密封	4362×?2280	2520
DSH-5.0	5.0	≤0.6	15	常溫常壓粉塵密封	4576×?2402	3000
DSH-6.0	6.0	≤0.6	15	常溫常壓粉塵密封	4900×?2582	3150
DSH-8.0	8.0	≤0.6	18.5	常溫常壓粉塵密封	5400×?2800	4500
DSH-10	10	≤0.6	20.7	常溫常壓粉塵密封	5795×?3018	5500
DSH-15	15	≤0.6	24.2	常溫常壓粉塵密封	6475×?3450	6600
DSH-20	20	≤0.6	41	常溫常壓粉塵密封	7535×?3805	7000
DSH-25	25	≤0.6	41	常溫常壓粉塵密封	7995×?4078	8500
DSH-30	30	≤0.6	52.5	常溫常壓粉塵密封	8385×?4330	9200

所有參數僅作參考，視物料情況，本公司擁有變更權利，并不另行通知。

All datas are used for reference only. According to the condition of material, our factory has the right to change but not notice, pardon!
