FLP多功能流化造粒包衣機─【佳發制粒干燥】

2023-01-17 佳發制粒干燥 0 百度一下

適合行業	制粒設備
發布作者	佳發制粒干燥
最近更新	2023-01-17 15:57:52

概述：應用概述 General of applications★FLP 多功能流化造粒包衣機是集噴霧干燥-制粒-離心制丸-流化包衣干燥于一體的多功能設備。該機兼容多種工藝操作。特別適用于醫藥、食品、化工等行業多品種、多劑型制粒、制丸及包衣。★FLP Granulator/Coater/Pelleter i

文章詳情

應用概述 General of applications

★FLP 多功能流化造粒包衣機是集噴霧干燥-制粒-離心制丸-流化包衣干燥于一體的多功能設備。該機兼容多種工藝操作。特別適用于醫藥、食品、化工等行業多品種、多劑型制粒、制丸及包衣。

★FLP Granulator/Coater/Pelleter is multi-function equipment integrated spray drying-granulating-centrifugal spray pelletizing-fluid coating-drying in one body. The machine combines various process operations. Particularly it is suitable for granulating, pelletizing and coating of various varieties in pharmaceutical industry, foodstuff industry and chemical industry, etc.

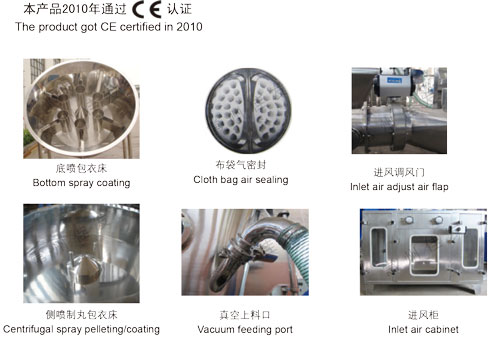

設備特點 Features of equipment

★集制粒、制丸、包衣、干燥多種功能于一體。

★粉體物料制粒。

★粉體物料包衣。

★粉體物料制丸。

★中藥噴霧制粒及包衣。

★制備10-30目大顆粒沖劑。

★粉體、顆粒、丸的薄膜、腸溶、緩控釋包衣。

★掩味、防潮、防氧化、防水、隔熱、著色、隔離包衣。

★粉狀、粒狀、丸狀物料干燥。

★ Multi-function such as granulating, pelletizing, coating, drying in one machine.

★ Powder material granulating.

★ Powder material coating.

★ Powder material pelletizing.

★ Chinese medicine spray drying, granulating and coating.

★ Make 10-30 meshes big granule.

★ Film coating of Powder, granules and pellets, enteric release, slow and control release coating.

★ Taste masking, odor, moisture-proof, anti-oxidation, prevent water, heat insulation, coloration and separation coating

★ Powder, granule, pellet agglomerate material drying.

項目ltem 規格specification			10	15	20	30	45	60	90	120
容器直徑 Dia of container		mm	700	800	900	1000	1100	1200	1400	1500
生產能力 Productive capacity		kg/批 kg/batch	2.5-10	3-15	5-20	7.5-30	10-45	15-60	20-90	30-120
風機功率 Power of fan		kw	5.5	7.5	7.5	7.5	11	15	18.5	22
蒸汽 Steam	壓強 Pressure	Mpa	0.4-0.6
蒸汽 Steam	耗量 Consumption	kg/h	35	42	47	60	140	160	180	240
壓縮空氣 Compressed air	壓強 Pressure	Mpa	0.6
壓縮空氣 Compressed air	耗量 Consumption	m3/min	0.6	0.6	0.6	0.9	0.9	1.1	1.3	1.5
噪音 Noise		dB	風機隔離處理噪音低于75分貝 No more than 75dB Separated of fan

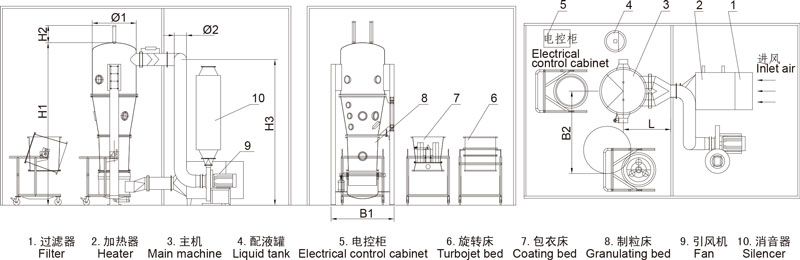

主機尺寸 Installation size for reference		H1(mm)	2790	3350	3650	3720	3720	3850	3950	4190
		H2(mm)	340	490	540	590	640	690	740	790
		H3(mm)	2570	3130	3430	3500	3500	3630	3720	3975
		?(mm)	250	250	250	280	280	280	280	315
		L(mm)	1250	1400	1450	1500	1550	1600	1650	1700
		B1(mm)	1160	1460	1560	1600	1760	1860	1960	2060
		B2(mm)	1860	2460	2660	2860	3060	3260	3460	3660

所有參數僅作參考，視物料情況，本公司擁有變更權利，并不另行通知。

All datas are used for reference only. According to the condition of material, our factory has the right to change but not notice, pardon!
